1-18t/h Ring Die Poultry Feed Machine by Electric

Model: LM250, LM320, LM350, LM400, LM420, LM508
Capacity(t/h):1-18
Conditioner Power(kw):1.1-5.5
Main Motor Power(kw):22-132
Feeder Power(kw):0.75-1.5
Size of Finished Pellets(mm):1.5-12

Send E-mail Chat Now

Products

Feed crushing machine

Feed Mixing Machine

Fish Feed Machine

Fish Feed Production Line

Poultry Feed Machine

Flat Die Poultry Feed Pellet Making Machine

Ring Die Poultry Feed Pellet Making Machine

Poultry Feed Machine Line

Chicken Feed Pellet Line 1-2t

Chicken Pellet Line 100-1000kg

Inquiry

Related products:

1-18t/h Ring Die Poultry Feed Machine by Electric

Model: LM250, LM320, LM350, LM400, LM420, LM508
Capacity(t/h):1-18
Conditioner Power(kw):1.1-5.5
Main Motor Power(kw):22-132
Feeder Power(kw):0.75-1.5
Size of Finished Pellets(mm):1.5-12

60-1000kg/h Flat Die Poultry Feed Machine by Electric/Diesel Engine

Electric-type
Model: LM120, LM150, LM210, LM230, LM260, LM300, LM400
Capacity:60-1000kg/h
Main Motor Power(KW):3-30
Dia of Mould:120, 150, 210, 230, 260, 300, 400
Size of Finished Pellets(mm):1.5-12
Deisel-type
Model: LM120, LM150, LM210, LM230,
Capacity:60-400kg/h
Main Motor Power(hp):8-22
Dia of Mould:120, 150, 210, 230
Size of Finished Pellets(mm):1.5-12

Description

Machine Functions

1. Feed pellets can raise rabbits, chickens, ducks, geese, fish, pigs, cattle, sheep, and aquatic products.
2. Feed Pellet Mill with Ring Die is a good choice for Animal Feed Pelletizing.
3. The size of the pellets can be changed by changing the mold.
4. The raw material enters the steel mold. The rotating roller is pressed into the working chamber, embedded in the die hole, extruded from the outer wall of the steel mold, and cut into cylindrical particles by a cutter.

Product Features

1. The machine has a long service life because of made of wear-resistant material
2. Adjustable compression rate, the pellet mill can meet different pelletizing requirements and is available to press coarse materials.
3. The pelletizing process is visible, so it is convenient to solve problems in time.
4. Simple structure, low consumption, small area coverage, easy operation, and maintenance.
5. poultry Feed size can be adjusted according to grinding tool size

Product Parameter

Model	Main power(kw)	Capacity	Feeder Power(kw)	Conditioner power(kw)	Dimension(mm)	Weight(kg)

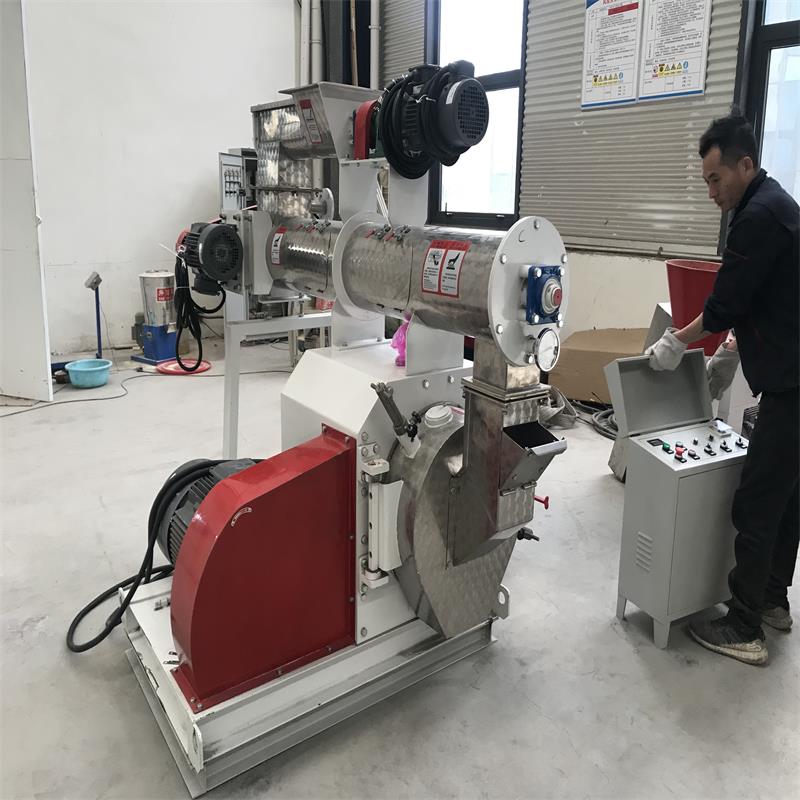

LM250	22	1-2 T/H	0.75	1.1	17006501750	715

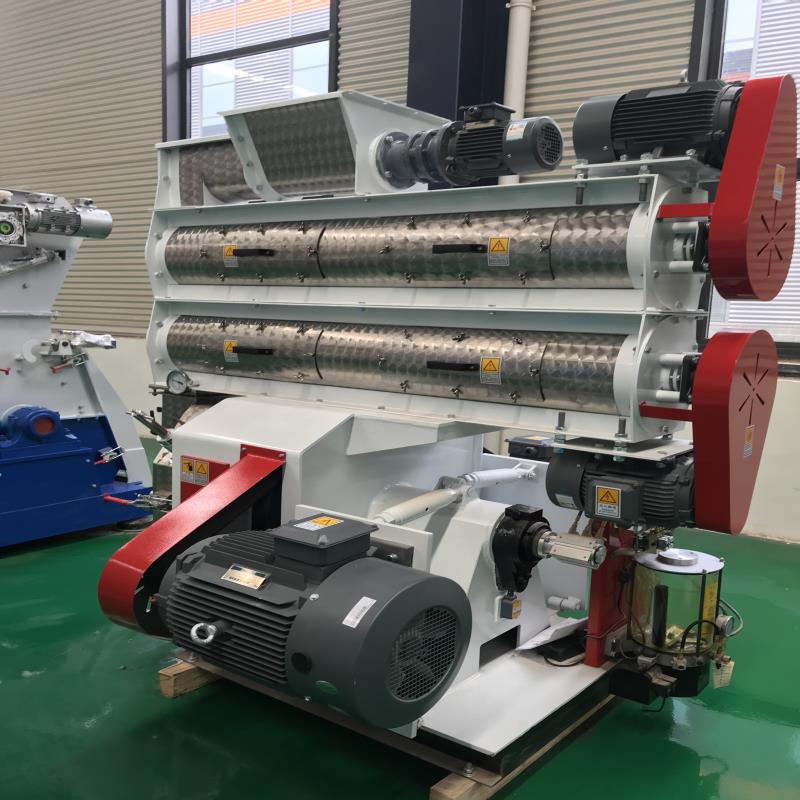

LM320	37	2-4 T/H	0.75	2.2	180015501650	1400

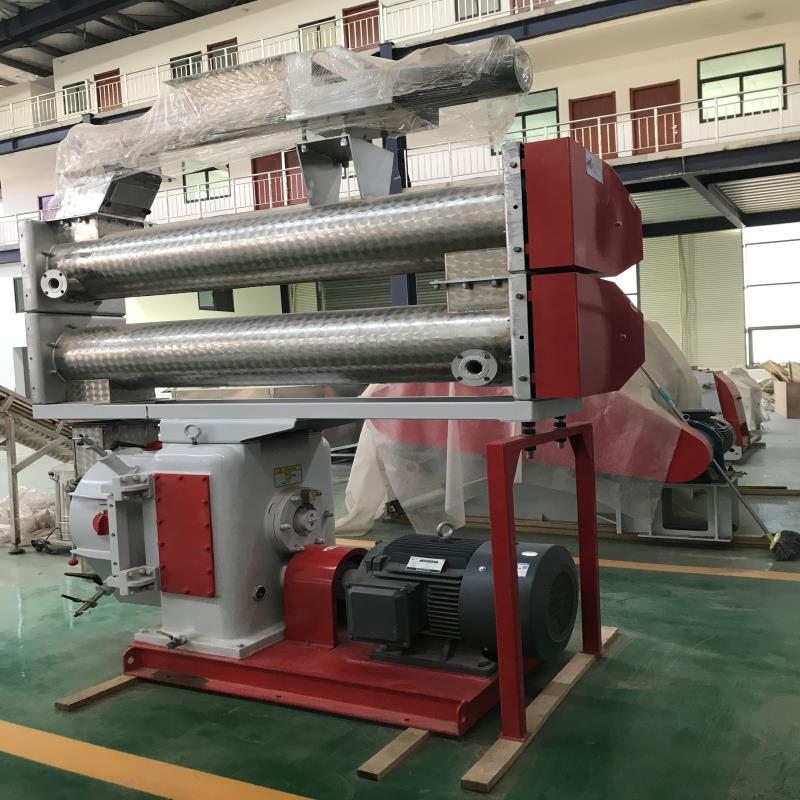

LM350	55	2-6 T/H	0.75	2.2	215019501900	2000
LM400	90	3-8 T/H	1.5	4	230020002020	2500
LM420	110	4-12 T/H	1.5	4	230023302090	3200
LM508	132	4-18 T/H	1.5	5.5	335023502200	4300
